Description
- FREE SHIPPING AUSTRALIA WIDE
- 50ml bottle
High strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.

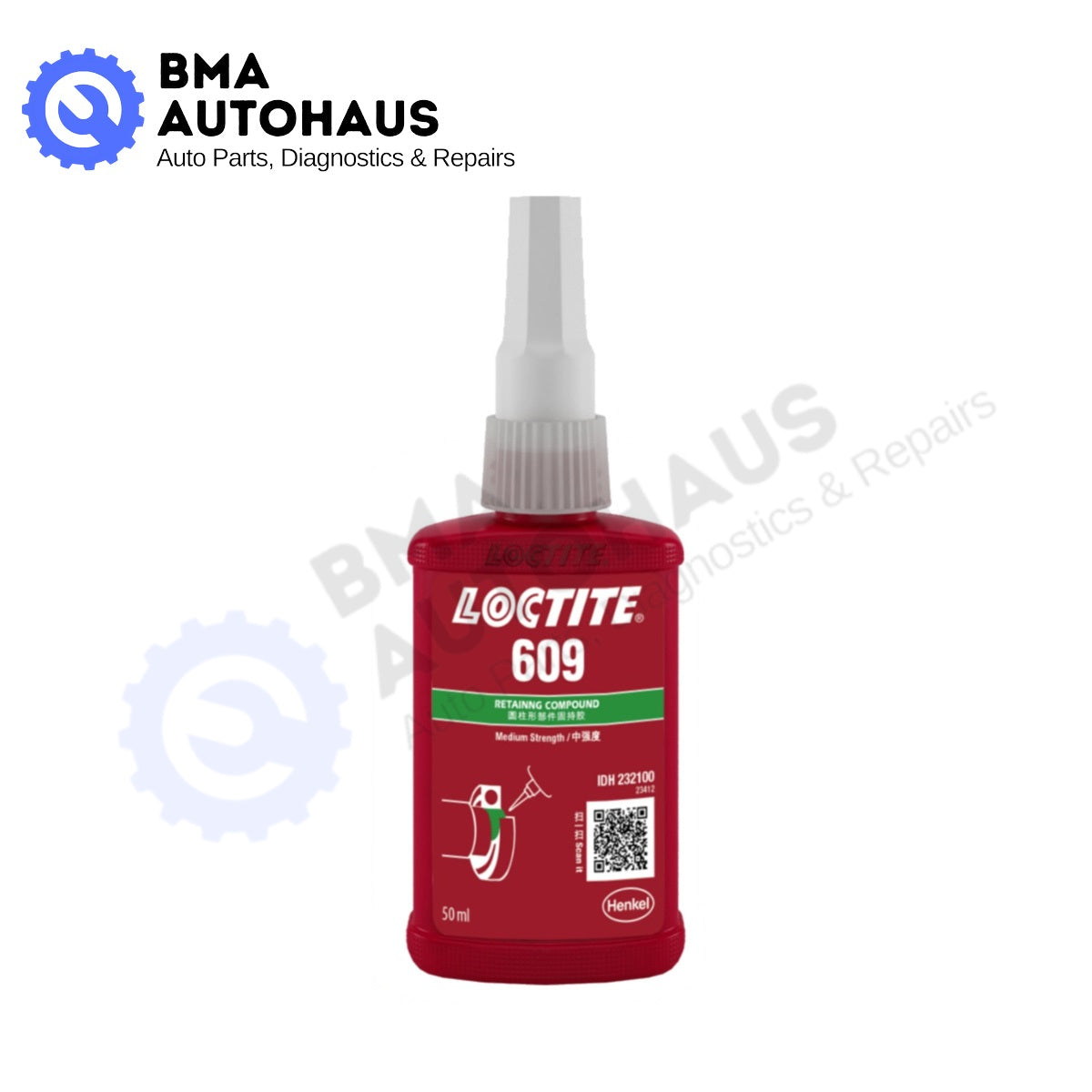

LOCTITE® 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close fitting metal surfaces. Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts. Augments press fits.
- Low viscosity
- Augments press fits
- Prevents loosening and leakage from shock and vibration
- Tested to the lot requirements of Military Specification Mil-R-46082B (this is a regional approval)
- Operating temperature -65°F to 300°F (-55°C to 150°C)
Technical Information
| Agency approvals / certificates / specifications | ASTM D5363, MIL-R-46082B for existing designs |
| Application method | Dispense Gun, Dispense System, Manual |
| Applications | For Close Fitting Cylindrical Parts, Retaining |
| Colour | Green |
| Cure type | Anaerobic Cure |
| Fixture time | 10.0 min. |
| Gap fill | 0.15 mm |
| Key characteristics | Fluorescent, Shear Strength: High Shear Strength, Viscosity: Low Viscosity |
| Operating temperature | -65.0 - 300.0 °F (-55.0 - 150.0 °C ) |
| Physical form | Liquid |
| Recommended for use with | Metal |
| Shear strength, Steel | 2300.0 psi (15.0 N/mm² ) |
| Specific gravity, @ 25.0 °C | 1.1 |
| Viscosity | 120.0 mPa·s (cP) |
